NKK Switches M2013LL1W01 Datasheet & Stock

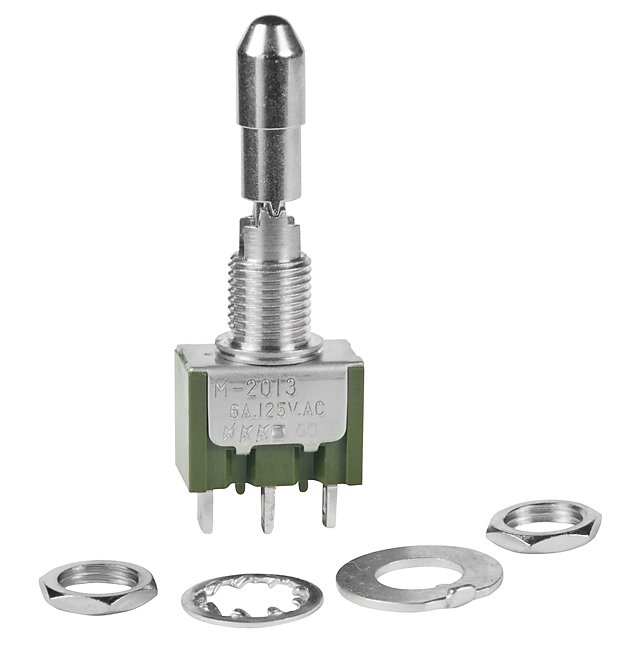

The M2013LL1W01 is a SPDT non-illuminated Miniature panel-mount Toggle Switch with ON-OFF-ON switch function and solder lug switch terminals. It has 5.1mm diameter locking lever, 7.4mm nickel-plated brass threaded with keyway bushing for lever lock, stainless steel frame and tin-plated brass support bracket. It is designed with anti-rotation design, standard on non-cylindrical levers, mates toggle and bushing, bottom of toggle has two flatted sides which fit into a complementary opening inside bushing. The anti-jamming design protects contacts from damage due to excessive downward force on actuator. High insulating barriers increase isolation of circuits in multi-pole devices and provide added protection to contact points. High torque bushing construction prevents rotation or separation from frame during installation. Interlocked actuator block, lever and interior guide prevent switch failure due to biased lever movement.




UL94V-0 Flammability rating

IP67 Protection rating

25000 Minimum operations of electrical life

Prominent external insulating barriers increase insulation resistance and dielectric strength

Epoxy sealed terminals prevent entry of solder flux and other contaminants

-30 to 85°C Operating temperature range





Applications


Industrial
